ADSP2181 Evaluation Module.

This evaluation module is meant for a range of audio/speech and industrial applications. The board comes with 512K byte high-speed static RAM, medium speed Analog I/O lines. The board can also be used in standalone applications.


  • ADSP2181 operating at 33MHz.
  • Boot memory:  64 KBytes / 128 KBytes EPROM.
  • On-chip Program memory: 16K X 24 bits.
  • On-chip Data memory: 16K X 16 bits.
  • External Byte memory for data storage: 512K X 8 bits. Battery backup supply is available for this byte memory.
  • LED status indication.
  • One Digital input port with 16 lines and one Digital output port with 16 lines.
  • 16 bit Analog to Digital converter and 16 bit Digital to Analog converter with sampling rate 64K samples / sec.
  • Programmable input / output sample rates.
  • Programmable input / output gain.
  • RS232 Serial port for communicating with the host PC.
  • On-board power regulator.
  • ADSP bus lines are available for user’s applications.
  • With application software to download and execute user programs.

Bundle Contents:

  • ADSP2181 Evaluation Module.
  • CDROM with useful documents and software.
  • Power Supply.
  • Serial Port Communicating Cable.
  • Analog Input / Output Cable.
  • ADSP2181 Evaluation Module Technical Reference Manual.
  • AD1847, AD73311AR Chip Details.
  • ADSP2100 Family User's Manual.

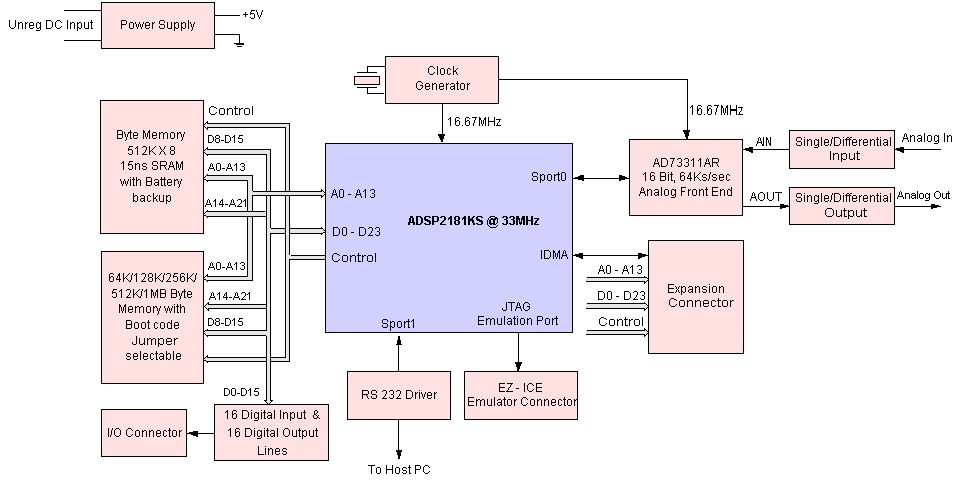

Block Diagram of ADSP2181 Evaluation Module.
