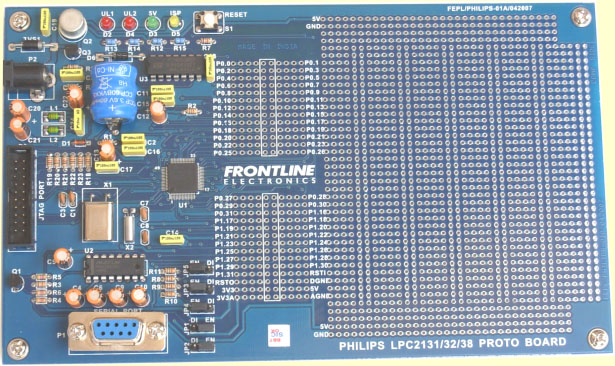

Philips ARM Proto Board




  • Philips LPC2138 of ARM7 family operating at 60 MHz..
  • On board Micon programming facility.
  • On board facility to connect JTAG Debugger with the micon.
  • All the port lines of the micon are terminated in header connectors for external interfacing.
  • Different operating modes of the micon are selected using jumpers.
  • On board serial port drivers are provided for the USART0.
  • Board can accept the external regulated 5V supply
  • On board Proto area is available for the user applications.
