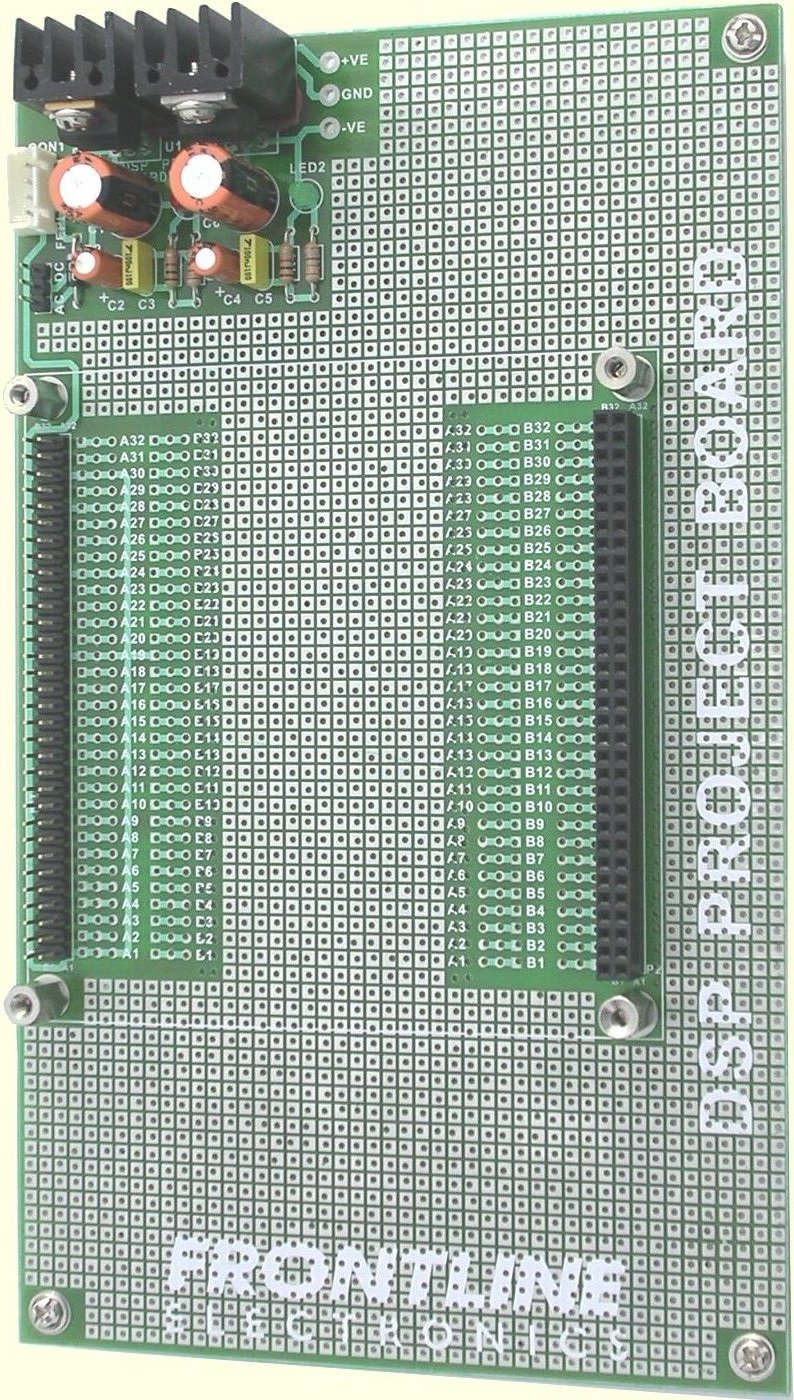

DSP Project Board.

The DSP Project Board is meant for developing the application specific hardware using the Diamond Board. The Project Board comes with suitable connectors to hold the Diamond Board along with sufficient proto area.

This DSP Project Board enables the users to take up their projects immediately after opening the pack.

The DSP Project Boards is the complementary to every DSP Diamond Board and not available separately.

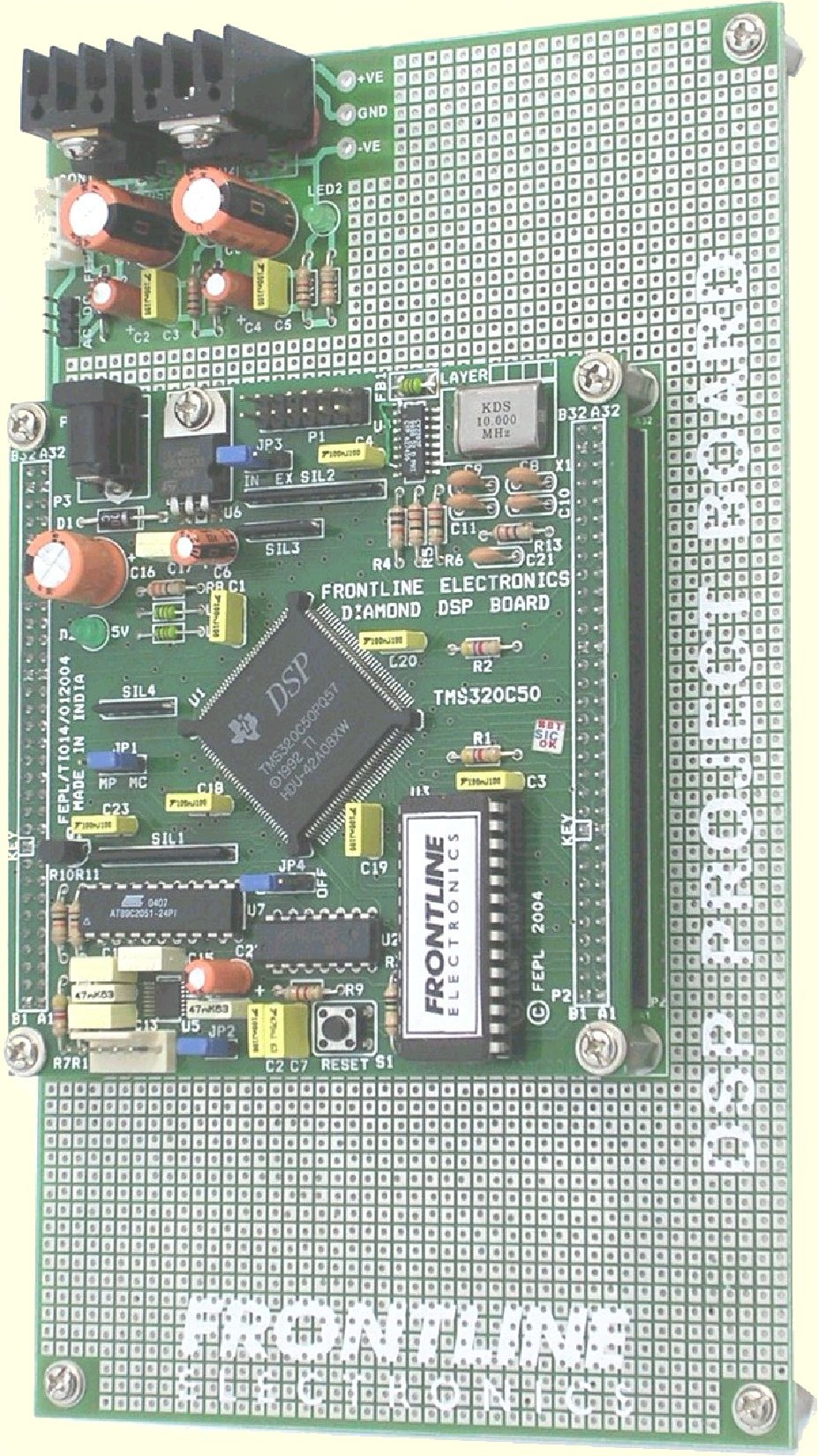

  • DSP Project Board holds the Diamond Board using the suitable connectors.
  • Sufficient proto area is available to develop specific hardware.
  • Facility to include two DC Power Supplies in your application.
  • You can use upto 40pin Dip devices as well as PLCC sockets.
