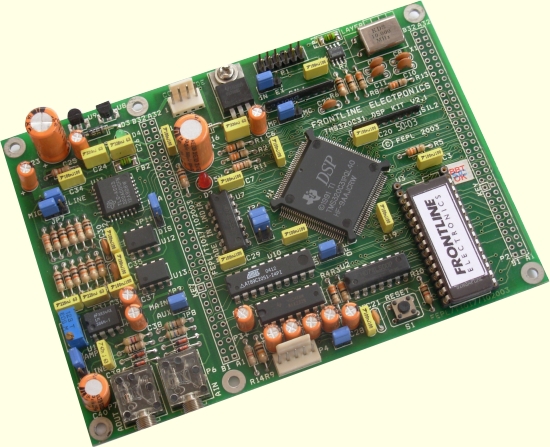

TMS320C31 Starter Kit.

The TMS320C31 Based DSP Starter Kit is the most popular and powerful entry level development tool to explore TI’s most popular Floating point processor family. It is a complete tool that encourages you to study the floating point DSP and also try many experiments in the DSP arena.



  • TMS320C31 Processor running at 41.472 MHz.
  • Analog Interface Chip with 14 Bit Analog to Digital converter and 14 bit Digital to
    Analog converter with 16 bit dynamic range.
  • Programmable sample rate upto 43 kHz.
  • Programmable +3V / -3V full-scale input.
  • Programmable +3V / -3V full-scale output into 600 ohms load. It can drive an 8-ohm Speaker directly.
  • Programmable anti-aliasing and reconstruction filters
  • Facility to connect MIC and Speaker.
  • Over voltage protection for analog inputs.
  • Communicating with host PC through parallel port.
  • With Assembler and Debugger software with Graphical User Interface.

Bundle Contents:

  • TMS320C31 Starter Kit.
  • CDROM with useful documents and software.
  • Power Supply.
  • Parallel Port Communicating Cable.
  • Analog Input/Output Cable.
  • TMS320C31 Starter Kit Technical Reference Manual.
  • TMS320C3X User’s Guide.

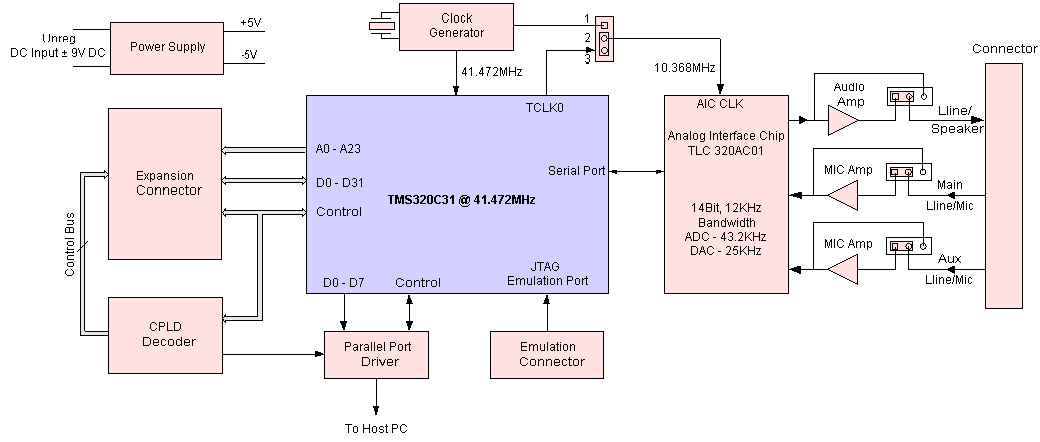

Block Diagram of TMS320C31 Starter Kit.


Click to get expanded image


Also Available:

Other DSP Trainers from Texas Instruments and Analog Devices.
Call  Frontline Electronics  for specific requirement.



Why

Frontline Electronics for DSP Tools ?

l We, at FE, conceive, design, manufacture, market all the required DSP tools in-house. Because of this, we have everything right from the scratch to the final documentation in total control.

We give more emphasis on making the DSP technology user friendly in all respects. Accordingly, we make both the hardware and software combination a best one to make DSP learning an easy and interesting one.

l FE’s DSP trainers come with simple hardware designed mainly to make the study of target DSP device a comforting one without complicated elements.

l DSP hardware presents itself as friendly to you and motivate you to take up advanced studies without overwhelming circuits.

l These days, new DSP trainers are configured using the respective DSP Diamond boards. So, after studying the target DSP, you can easily put the Diamond board into your target application with minimum external hardware. A Big Savings in your Time and Money!!

l FE already established itself as a reliable supplier of the DSP tools for the last 10 years. In addition, FE shall continue supplying the same kind of DSP tools for a very long time in the future also.
