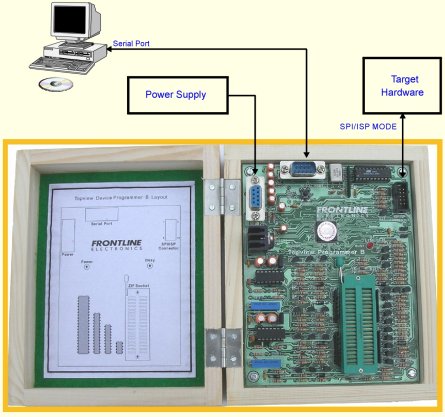

Topview  Device  Programmer  B  for  Atmel  8051  and AVR  Microcontrollers.

Bundle Contents:

  • Programmer Hardware mounted in the sleek wooden box.
  • Power Supply.
  • Serial Port Cable.
  • SPI/ISP Programming Cable.
  • Programmer User Guide.
  • CD containing Programmer Software and other useful information.

Specifications.

Topview programmer B is an exclusive professional programming environment to support as many 8051 Derivative microcontrollers and AVR Devices manufactured by the Atmel semiconductors. The programmer supports popular and widely available microcontrollers with OTP and flash memories. Built-in facility is available to support many other compatible microcontrollers from the Atmel stable in future.

Apart from these controllers, the programmer supports 24XX, 25XX and 93XX families of EEPROM devices from both Atmel and Microchip.

List of Supported Devices.

OTP Devices.

1. TS87C51U2

2. TS87C52X2

3. TS87C54X2

4. TS87C58X2

5. TS87C51RB2

6. TS87C51RC2

7. TS87C51RD2

Flash Devices.

8051 Derivative Devices:

1. AT89S51

13. AT89C52

2. AT89LS51

14. AT89LV52

3. AT89S52

15. AT89C55

4. AT89LS52

16. AT89LV55

5. AT89S8252

17. AT89C55WD

6. AT89LS8252

18. AT89C1051

7. AT89S53

19. AT89C1051U

8. AT89LS53

20. AT89C2051

9. AT89C51

21. AT89C2051X2

10. AT89LV51

22. AT89C4051

11. AT89C51RC

23. AT89S8253

12. AT89LS8253

AVR Devices:

1. AT90S1200

11. AT90S8535

21. ATmega161

2. AT90S2313

12. AT90LS8535

22. ATmega161L

3. AT90S2333

13. ATmega8

23. ATmega168

4. AT90LS2333

14. ATmega8L

24. ATmega168V

5. AT90S4433

15. ATmega16

25. ATmega8515

6. AT90LS4433

16. ATmega16L

26. ATmega8515L

7. AT90S4434

17. ATmega48

27. ATmega8535

8. AT90LS4434

18. ATmega48V

28. ATmega8535L

9. AT90S8515

20.ATmega88V

19. ATmega88

10. AT90LS8515

20. ATmega32

20. ATmega32L

EEPROM Devices.

1. 24AA00

32. 24C00

63. 24LC00

2. 24AA01

33. 24C01

64. 24C01A

3. 24C01B

34. 24C01C

65. 24LC01B

4. 24AA02

35. 24C02

66. 24C02A

5. 24C02B

36. 24C02C

67. 24LC02B

6. 24AA04

37. 24C04

68. 24C04A

7. 24LC04B

38. 24AA08

69. 24C08

8. 24C08A

39. 24C08B

70. 24LC08B

9. 24C16

40. 24C16B

71. 24AA16

10. 24LC16B

41. 24C164

72. 24C21

11. 24LC21

42. 24LC21A

73. 24LCS21

12. 24LCS21A

43. 24LC024

74. 24LC025

13. 24AA32

44. 24AA32A

75. 24C32

14. 24C32A

45. 24FC32A

76. 24LC32

15. 24LC32A

46. 24LCS52

77. 24AA64

16. 24C64

47. 24LC64

78. 24AA65

17. 24C65

48. 24FC65

79. 24LC65

18. 24AA128

49. 24C128

80. 24CS128

19. 24FC128

50. 24LC128

81. 24C256

20. 24AA256

51. 24CS256

82. 24FC256

21. 24LC256

52. 24C512

83. 24C1024

22. 93AA46

53. 93C46

84. 93C46A

23. 93C46B

54. 93C46C

85. 93LC46

24. 93LC46A

55. 93LC46B

86. 93AA56

25. 93C56

56. 93C56A

87. 93C56B

26. 93LC56

57. 93LCS56

88. 93AA66

27. 93C66

58. 93C66A

89. 93C66B

28. 93LC66

59. 93LC66A

90. 93LC66B

29. 93LCS66

60. 93AA76

91. 93C76

30. 93LC76

61. 93AA86

92. 93C86

31. 93C86

62. 93LC86



GUI Features.

  • Supports more than 50 popular and widely available Atmel Microcontrollers.
  • Also supports around 100 EEPROM devices from both Atmel and Microchip.
  • Single 40 pin ZIF socket to accommodate DIP devices.
  • Facility is also available to program through SPI (for AT89SXX series and AVR controllers) and ISP mode (for some of 89CXX devices) after soldering the device in the target board using a 10-pin cable. The cable is made available along with the programmer.
  • Programmer can be upgraded to support new devices at your premises.
  • Programmer can be connected through serial port of the personal computer.
  • LED indicators are provided for Power and Busy Status.
  • The programmer is mounted in a sleek and eye catching wooden jewel box.
  • Programmer comes with a separate power supply and serial port cable and SPI/ISP programming cable.

Programming Features:

  • Supports both Binary and Hex formats.
  • Commands and Functions as per Atmel specification.
  • Major Commands:
    • Erase
    • Blank Check.
    • Protect the Device against Copying.
    • Read the Device Signature.
    • Read the Protection Status.
    • Program Fuse Bits.
    • Program Flash Memory.
    • Program Encryption Table.
    • Program On-chip EEPROM.
    • Verify.
  • Auto Programming Mode to automate the selected commands.
  • Multiple devices can be programmed in production floor.
  • Project management facility.
  • You can read the flash memory contents as the program.
  • You can edit, assemble and modify your application code.
  • Facility to program EEPROM devices, 24XX, 25XX and 93XX from Atmel and Microchip.
