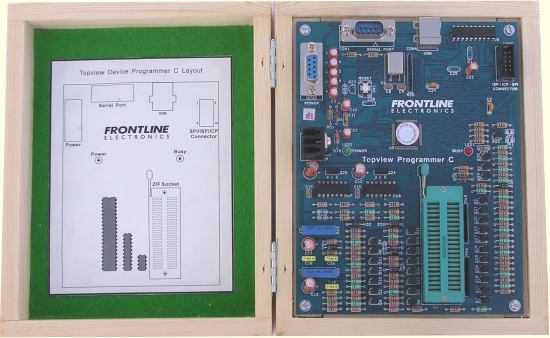

Topview  Device  Programmer  C - Universal Programmer for  8051  Devices.

Bundle Contents:

  • Programmer Hardware mounted in the sleek wooden box.
  • Power Supply.
  • USB Cable.
  • Serial Port Cable
  • SPI/ISP Programming Cable.
  • Programmer User Guide.
  • CD containing Programmer Software and other useful information.

Specifications.
Topview programmer C is an exclusive professional programming environment to support as many 8051 Derivative microcontrollers manufactured by the Atmel semiconductors and Philips Semiconductors. The programmer supports popular and widely available microcontrollers with OTP and flash memories. Built-in facility is available to support many other compatible microcontrollers from the Atmel  and Philips Stable in future.

Apart from these controllers, the programmer supports 24XX, 25XX and 93XX families of EEPROM devices from both Atmel and Microchip.

GUI Features.

  • Supports more than 50 popular and widely available Atmel Microcontrollers.
  • Also supports around 100 EEPROM devices from both Atmel and Microchip.
  • Single 40 pin ZIF socket to accommodate DIP devices.
  • Facility is also available to program through SPI (for AT89SXX series and AVR controllers) and ISP mode (for some of 89CXX devices) after soldering the device in the target board using a 10-pin cable. The cable is made available along with the programmer.
  • Programmer can be upgraded to support new devices at your premises.
  • Programmer can be connected through serial port  or USB port of the personal computer.
  • LED indicators are provided for Power and Busy Status.
  • The programmer is mounted in a sleek and eye catching wooden jewel box.
  • Programmer comes with a separate power supply and serial port cable and SPI/ISP programming cable.

Programming Features:

  • Supports both Binary and Hex formats.
  • Commands and Functions as per Philips specification.
  • Major Commands:
    • Erase
    • Blank Check.
    • Protect the Device against Copying.
    • Read the Device Signature.
    • Read the Protection Status.
    • Program Fuse Bits.
    • Program Flash Memory.
    • Device Configuration.
    • Program Status Byte and Boot Vector.
    • Program User Program Table.
    • Program Encryption Table.
    • Program On-chip EEPROM.
    • Verify.
    • Cycle Redundancy Check.
  • Auto Programming Mode to automate the selected commands.
  • Multiple devices can be programmed in production floor.
  • Project management facility.
  • You can read the flash memory contents as the program.
  • You can edit, assemble and modify your application code.
  • Facility to program EEPROM devices, 24XX, 25XX and 93XX from Atmel and Microchip.



List of Supported Devices.
OTP Devices - Atmel:

1. TS87C51U2

2. TS87C52X2

3. TS87C54X2

4. TS87C58X2

5. TS87C51RB2

6. TS87C51RC2

7. TS87C51RD2



OTP Devices - Philips:

1. P87C51

2. P87C52

3. P87C54

4. P87C58

5. P87C51X2

6. P87C52X2

7. P87C54X2

8. P87C58X2

9. P87C51FA

10. P87C51FB

11. P87C51FC

12. P87C51RA+

13. P87C51RB+

14. P87C51RC+

15. P87C51RD+

16. P87LPC760

24. P87LPC761

25. P87LPC762

26. P87LPC764

27. P87LPC767

28. P87LPC768

29. P87LPC769

 Flash Devices - Atmel:

1. AT89S51

2. AT89LS51

3. AT89S52

4. AT89LS52

5. AT89S8252

6. AT89LS8252

7. AT89S53

8. AT89LS53

9. AT89C51

10. AT89LV51

11. AT89C51RC

12. AT89C52

13. AT89LV52

14. AT89C55

15. AT89LV55

16. AT89C55WD

17. AT89C1051

18. AT89C1051U

19. AT89C2051

20. AT89C2051X2

21. AT89C4051

Flash Devices - Philips:

1. P89C51B

2. P89C52B

3. P89C54B

4. P89C58B

5. P89C51U

6. P89C52U

7. P89C54U

8. P89C58U

9. P89C51X2

10. P89C52X2

11. P89C54X2

12. P89C58X2

13. P89C51RB+

14. P89C51RC+

15. P89C51RD+

16. P89C51RB2H

17. P89C51RC2H

18. P89C51RD2H

19. P89C51RA2

20. P89C51RB2

21. P89C51RC2

22. P89C51RD2

23. P89V51RD2

24. P89LV51RD2

25. P89C60X2

26. P89C61X2

27. P89C660

28. P89C662

29. P89C664

30. P89C668

31. P89LPC901

32. P89LPC902

33. P89LPC903

34. P89LPC904

35. P89LPC906

36. P89LPC907

37. P89LPC908

38. P89LPC912

39. P89LPC913

40. P89LPC914

41. P89LPC915

42. P89LPC916

43. P89LPC917

44. P89LPC920

45. P89LPC921

46. P89LPC922

47. P89LPC924

48. P89LPC925

49. P89LPC930

50. P89LPC931

51. P89LPC932

52. P89LPC932A1

53. P89LPC933

54. P89LPC934

55. P89LPC935

56. XA-G49

57. XA-G39

58. P89LPC9107

59. P89LPC936

60. P89LPC938

61. P89V52X2





 EEPROM Devices:

1. 24AA00

32. 24C00

63. 24LC00

2. 24AA01

33. 24C01

64. 24C01A

3. 24C01B

34. 24C01C

65. 24LC01B

4. 24AA02

35. 24C02

66. 24C02A

5. 24C02B

36. 24C02C

67. 24LC02B

6. 24AA04

37. 24C04

68. 24C04A

7. 24LC04B

38. 24AA08

69. 24C08

8. 24C08A

39. 24C08B

70. 24LC08B

9. 24C16

40. 24C16B

71. 24AA16

10. 24LC16B

41. 24C164

72. 24C21

11. 24LC21

42. 24LC21A

73. 24LCS21

12. 24LCS21A

43. 24LC024

74. 24LC025

13. 24AA32

44. 24AA32A

75. 24C32

14. 24C32A

45. 24FC32A

76. 24LC32

15. 24LC32A

46. 24LCS52

77. 24AA64

16. 24C64

47. 24LC64

78. 24AA65

17. 24C65

48. 24FC65

79. 24LC65

18. 24AA128

49. 24C128

80. 24CS128

19. 24FC128

50. 24LC128

81. 24C256

20. 24AA256

51. 24CS256

82. 24FC256

21. 24LC256

52. 24C512

83. 24C1024

22. 93AA46

53. 93C46

84. 93C46A

23. 93C46B

54. 93C46C

85. 93LC46

24. 93LC46A

55. 93LC46B

86. 93AA56

25. 93C56

56. 93C56A

87. 93C56B

26. 93LC56

57. 93LCS56

88. 93AA66

27. 93C66

58. 93C66A

89. 93C66B

28. 93LC66

59. 93LC66A

90. 93LC66B

29. 93LCS66

60. 93AA76

91. 93C76

30. 93LC76

61. 93AA86

92. 93C86

31. 93C86

62. 93LC86
